Basic Info
Color: polished/chrome
Origin: China
Material: aluminum
HS Code: 76042990
Product Description

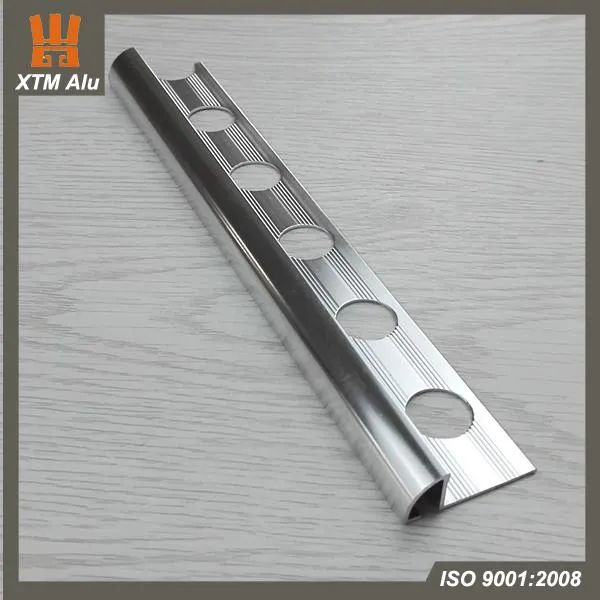

Aluminum Tile Trim
(1). aluminum products
(2). 20 years warranty.
(3). High corrosion resistance.
(4). 5-10 years weather resistance.
(5). Good wear resistance & anti-scratch.
(6).Size customized.
More Information:
1.Material: Aluminium alloy 6063, 6061.
2.Temper: T5, T6.
3.Quality standard: DIN; AAMA; AS/NZS; CHINAGB.
4.Surface treatment: Mill finish, anodized, powder coated, wood grain, polished, brushed, sand-blasting, etc.
5.Color avalilable: silver, bronze, gold, champagne, black, etc.
6.Packing details: Shrinking film; Plastic & kraft paper; Wooden pallet;Carton packing; By customer's requirements.
7.Delivery: Normally 30-45 days for mass production.
8.Production Capacity: 1500MT/Month
9.MOQ: Generally 200 KG/color/model/length.
10.Port: Guangzhou, Shenzhen, Foshan; As per requested.
What We Can Do
Alloy: | 6063 | 6061 |
| Temper : | T5 | T6 |
| Standard: | DIN | AAMA |
| Certification: | ISO9001: 2008. | |
| Surface Finish: | Mill finish, Anodizing, Powder coating, Sand-blasting, etc. | |
| Color: | Anodizing: | Silver, bronze, champagne, gold, black, etc. |
| Anodizing thickness is up to 18um. | ||
| Powder Coating: | White, black, bronze, grey, green, etc . | |
| Powder coating thickness is more than 60um. | ||
| Polishing | Silver, gold, black, etc | |
| Brushing: | Silver, gold, black, champagne, bronze, etc | |
| Machining: | precision cutting, deburring, drilling and tapping, CNC machining, forming and bending, assembly, punching and notching, etc. | |
| OEM customized aluminium profiles are available. | ||
| TABLE OF CHEMICAL COMPOSITION OF ALUMINUM ALLOY | |||||||||||
Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti | Impurity | Al | |
Unit | Total | ||||||||||
6063 | 0.2-0.6 | 0.45-0.9 | < 0.35 | < 0.1 | < 0.1 | < 0.1 | < 0.1 | < 0.1 | < 0.05 | < 0.15 | Surplus |
6061 | 0.4-0.8 | 0.8-1.2 | < 0.7 | 0.15-0.4 | < 0.15 | < 0.25 | 0.04-0.35 | < 0.15 | < 0.05 | < 0.15 | Surplus |
6060 | 0.3-0.6 | 0.35-0.6 | 0.1-0.3 | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.05 | < 0.1 | < 0.05 | < 0.15 | Surplus |
ADODIZINMG QUALITY | ||||
Grade | corrosion resistance | abrasive resistance | ||
CASS test | alkaline dropping test | sandtrial Abrasion coefficient f,g/um | ||
hours | grade | |||
AA10 | 16 | ≥ 9 | ≥ 50 | ≥ 300 |
AA15 | 32 | ≥ 9 | ≥ 75 | ≥ 300 |
AA20 | 56 | ≥ 9 | ≥ 100 | ≥ 300 |
AA25 | 72 | ≥ 9 | ≥ 125 | ≥ 300 |
| POWDER COATING QUALITY | |||||||
| Gloss values | Thickness(um) | color variation | indentation resistance | adhesion | impact resistance | cupping test | |
| Max Thickness | Min Thickness | ||||||
| 60 | ≤ 120 | ≥ 40 | Color should be consistent with the sample color | ≥ 80 | 0 | No cracking and shedding phenomenon after the front impact test,small fine lines around the concave is allowed | No cracking and shedding phenomenon after the cupping test ( 6mm indentation depth ) |
Our Advantages!
1. 21+ years of manufacturing experience. 9+years of Alibaba Gold Supplier membership.
2. STRONG R&D: Help customers finalize the design, strong tool design ability,excellent pressing and surface treament technology.
3.Strict quality management: ISO Administration system.
4.We have two 25-ton furnace ovens, which means that we don’t need to buy aluminum bars from outside. We produce them by ourselves to ensure aluminum purity.
5. High capacity of manufaturing and wide range of products.
6. We provide various fabrication services, including precision cutting, deburring, drilling and tapping, CNC machining, forming and bending, assembly, punching and notching, etc.
7. Small order is accepted.
8. Be able to provide one-stop supply solution.
FAQ to Save Your Precious Time!
Q: What's the thickness for anodizing? Can you do 15um?
A: Our normal thickness is about 8-10 um. Yes, we can do 15um and above.
Q: What color you can do for powder coating? The thickness for powder coating?
A: We can do any color for powder coating as long as you can provide the color sample. Our normal powder coating thickness is 60-80um.
Q: Are the delivery quantities exactly the same as I order?
A: I’m afraid they are not exactly the same. There will be a tolerance of +10% in quantities in general. And the payment amount will be calculated according to the actual delivery quantities.
Q: What is your packing like?
A: Generally our packing is each profile in a poly bag and bundles in a carton. Each carton will not exceed 20 kg. We can also do shrink film, pallet, Kraft paper, etc. Please tell us your specific packing requirements.
Q: What is the maximum length that you can produce?
A: The maximum length that we can produce is 6 meters.
Q: What's the payment terms?
A: Usually by T/T, 30% deposit and the balance paid before shipment.
Q: What certification do you have? What's your standard?
A: We have ISO certification. Our standard is DIN, AAMA, AS/NZS, China GB.
Q: What's the delivery time for samples and mass production?
A: (1). 2-3 weeks to open the new moulds and make free samples.
(2). 4-5 weeks after receipt of deposit and confirmation of the order.
Q: What's the packing way?
A: Commonly we use poly bag, kraft paper or cartons. Also we can make as per customers' requirements.
